Corpuls3 Monitor and Professional Defibrillator

A Revolutionary Device Concept

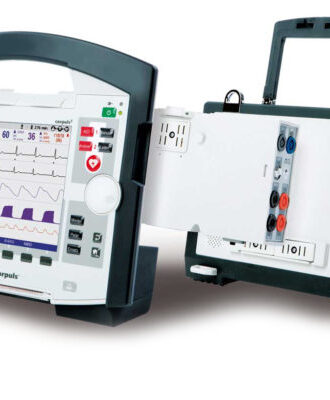

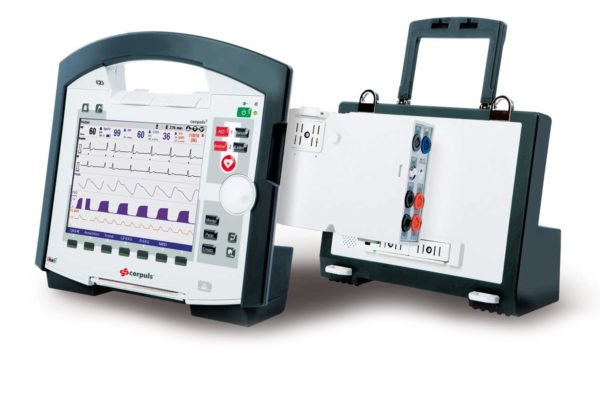

Corpuls3 offers a unique and revolutionary concept, a patient monitor with integrated defibrillator and pacer, all of which can be separated into three modules, namely:

• Monitoring unit
• Patient box

• Defibrillator/pacer

Features:

• Corpuls3 Monitoring unit has a 8.4″ transflective, backlit colour display with 7 softkeys and function keys for quick access to important menu items and functions. Up to 6 curves and 13 parameter values can be simultaneously displayed. Views can be freely configured and named. A wide printer (106 mm) with simultaneous real-time printing which can print up to 6 curves. Intuitive user interface with jog dial for fast and easy menu control.
• The wireless technology allows the modules to communicate over distances of up to 10m.
• Corpuls3  Patient box collects, stores and analyses ECG and sensor signals. Cables and sensors are preconnected onto the Patient Box. Separate display to indicate vital parameters and remaining runtime. Patient and mission data stored on CF card®
• Corpuls3 Defibrillator/pacer delivers biphasic rectangular waveform, impedance-compensated shock. 2 to 200 joules, with a configurable energy protocol. AED and manual defibrillator. AED protocol according to the current ERC/AHA guidelines. Corpuls3 can be used with hard paddles as well as internal shock paddles. Pre-connected corPatch therapy electrodes are included in their own bag. A Pacer with 3 modes (FIX, DEMAND, OVERDRIVE) is included.

• Live data and diagnostic ECG transmission using the integrated 3G-modem to corpuls.web brings clinical support to the emergency scene
• Corpuls3 comes with the following basic functions:

• 6-lead monitoring ECG
• 12-lead diagnostic ECG with display preview and HES light ECG interpretation software
• AED and manual defibrillator mode

• Pacer with 3 therapy modes (FIX, DEMAND, OVERDRIVE)
• CPR Feedback system corPatch CPR

• Corpuls3 Options:

• Masimo Rainbow SET®
• NIBP

• CO2 measurement
• Temperature measurement
• IBP
• HES ECG interpretation

 Codes and Dimensions:

• Name: Corpuls3 Monitor and Defibrillator
• Order Code: CORP04100
• Height: 296mm, Width: 305mm, Depth: 195mm (SLIM)

Usage:

• EMS Vehicles
• AIR Rescue
• Military Solutions
• Disaster Control Solutions
• ICU

• Emergency Department
• HBO Chamber

Corpuls3 Monitor and Professional Defibrillator

corpuls® defibrillator/monitoring systems have defined the standard in the specialised pre hospital environment for decades due to their unique ergonomics and implementation of most recent medical findings. The combination of the latest technology and pragmatic functionality is a design pattern that is applied to every corpuls® since the company was founded in 1982.

A Revolutionary Device Concept

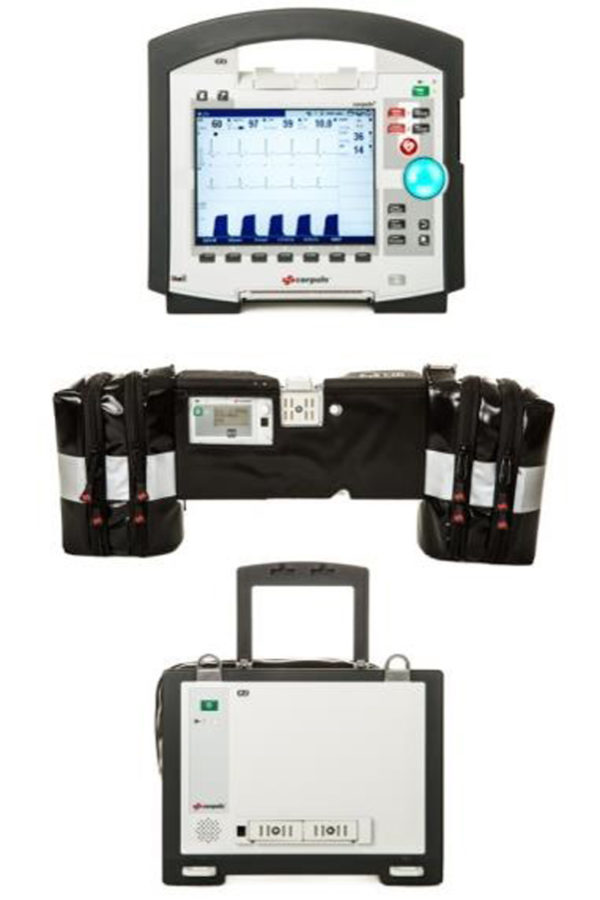

The corpuls3 offers a unique and revolutionary device concept to address the challenges rescuers face in their versatile workspace. The corpuls3 offers an entirely new and revolutionary design-concept compared with traditional compact defibrillator/monitoring devices. It is designed as a complete modular system and can be split into:

• Monitoring unit
• Patient box
• Defibrillator/Pacer unit

This means unrivalled ergonomics, functionality and flexibility: With the Monitoring unit in your hand:

• Take control of the situation!
• Attach the Patient box to the stretcher
• Effective working!

The detachable Monitoring unit guarantees easy handling and provides an ergonomic solution for pre-hospital situations.

• Jog-dial, softkeys and function keys for intuitive, fast and immediate access and operation
• Large colour display (8,4”) with individually configurable display views and 12 lead diagnostic ECG preview
• Integrated LAN or GSM for data transmission with
  corpuls.web

The Patient box is the “heart” of the system and enables uninterruptible monitoring from the EMS
site into the hospital.

• The immediate feedback on depth and rate of thorax compressions of corPatch CPR ensures high quality CPR and improves the outcome of patients
• Simultaneous 12 lead diagnostic ECG with optional measuring and interpretation software
• Innovative Masimo® Rainbow® SET technology for measurement of SpO2, SpCO, SpMet, SpHb, PI and PP

Greater mobility and flexibility due to weight reduction if the defibrillator is not needed.

• Enhanced therapy options with smart metronome  during CPR
• Pacing: fix, demand and overdrive pacing with ramp-down mode
• Optional usage, with corPatch therapy electrodes or shock spoons

Areas of Use:

AMBULANCE SERVICE

Whether the ambulance crews deal with an entrapped casualty after a road traffic collision, resuscitation in a small bathroom or the task of transporting a patient down a multi-story building – every job for the ambulance services attends is unique and so are the demands on staff and equipment. That’s why the corpuls3 offers a modular concept to allow the user the highest degree of ergonomics and flexibility in every scenario.

ARMED FORCES

No matter where the armed forces operate – snow covered hilltops, searing tropical heat or in the middle of a desert sandstorm the corpuls3 withstands even in the most adverse weather conditions. Its IP 55 Rating and operating temperature range make it the ideal patient monitor/defibrillator for military use.

AIR MEDICAL SERVICES

Nearly all patients on board a helicopter or airplane require continuous and advanced monitoring during the journey that conventional monitors can’t offer in this specialized area without compromise. Limited space, high noise levels and accessibility to the casualty are just some of challenges in this environment that the corpuls3 addresses with its innovative modular concept.

HOSPITAL

Defibrillator/Monitors are essential pieces of equipment in multiple departments of any hospitals. The corpuls3 can be used as a remotely controlled ICU monitor to acquire 12-lead ECGs in the A+E department or on as an integral part of the hospitals cardiac arrest team.
