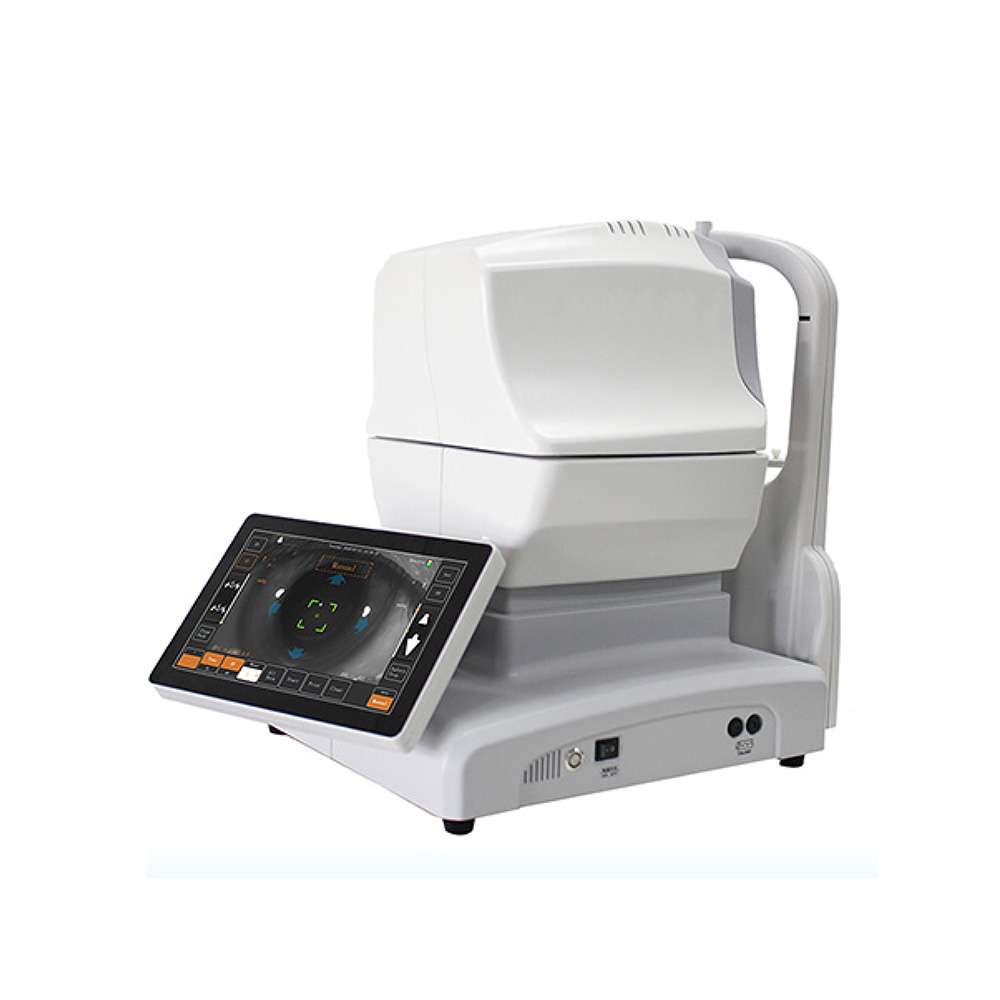

Eye Care Tenometer


Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness


  • Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg/1mmHg ~60mmHg ( precision of 1mmHg)
  • Measuring system: dual sensor system of light and pressure
  • Working distance:≥11mm
  • R/L: automatic detection and display
  • Measuring result: 10 times per eye; 3 times result printing per eye
  • Recording: build-in printer
  • Measuring mode: auto/manual
  • Focus: when luminous spot is in the focus frame, 2 modes can be chosen.
    • auto mode: auto intraocular pressure measurement
    • manual mode: when it’s good focus, the frame will turn yellow into green, and click to start the measurement
  • Error indication: if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR “
  • Safety limit button: install measurement for minimum distance between head and patient
  • Safety functions: the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head.
  • Movement range:≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical) Jaw layer vertical movement: 0~65mm with under jaw layer
  • Display mode: 10.1-inch HDMI color LED touch monitor
  • Output port: USB2.0
  • Working platform: electric elevating platform
