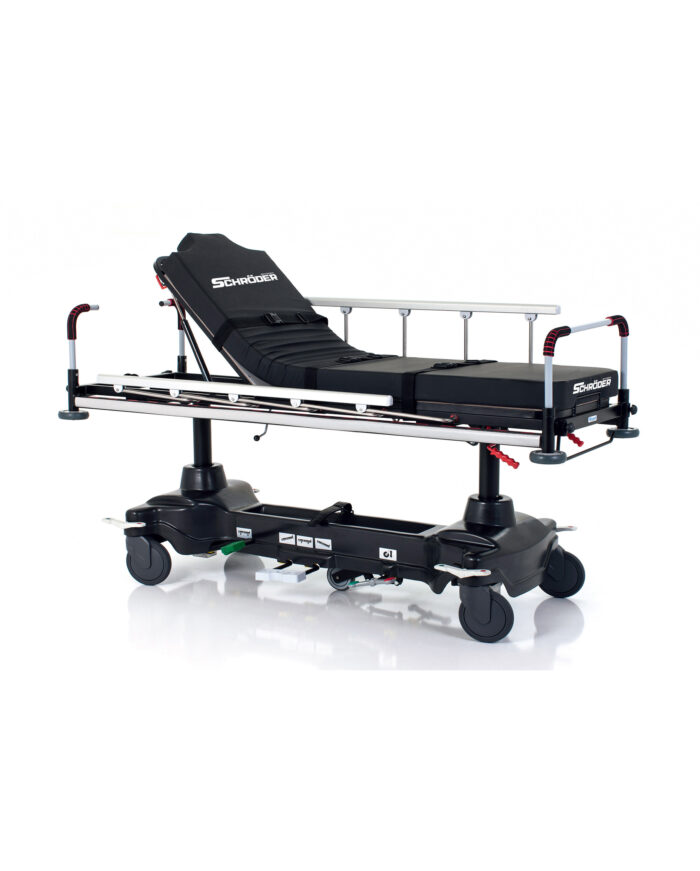

Functional emergency stretcher- ES110

Compare

GENERAL SPECIFICATIONS

  • Hydraulic height adjustment supported with columns
  • Trendelenburg and Reverse Trendelenburg positions
  • Backrest adjustment assisted by gas spring
  • Foam mattress with antibacterial, air permeable,   water–proof polyurethane cover
  • X-Ray Translucent, compact laminate mattress platform
  • Oxygen tank holder
  • Auto regression system
  • Lockable  Chrome and Aluminum side rails
  • Pushing bars
  • Protective corner bumpers
  • Electrostatic powder coated main frame
  • 360° Swivel Castors with central braking mechanism and steer  control
  • 5th Castor for easy maneuvering (Ø 125 mm )
  • Height adjustable  IV Pole Stand
  • ABS Covered sub-frame for easy cleaning and disinfection
  • Paper Roll hanger





TECHNICAL SPECIFICATIONS



Backrest Angle: 0o-70o
Trendelenburg Angle: 0o-15o
Reverse Trendelenburg Angle: 0o-15o
Castor Diameter: 200mm
5th Castor Diameter: 125mm
Safe Working Load Capacity: 240kg
External Dimensions: 84x220cm
Mattress Dimensions: 62x195cm
Mattress Thickness: 10cm
Height Range:

(without mattress)

66-96cm
